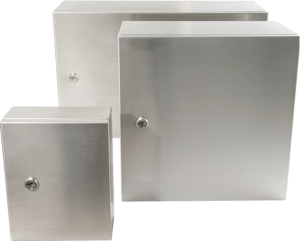

Stainless Steel Industrial Enclosures with Hinge
- Universal enclosure with hinge covered and lock
- Optional individual sizes and versions e.g. with flange openings or window from 25 pcs.
Included in delivery
Enclosure with hinged lid, double ward lock, 4 floor mounting bosses with fastening holes and sealing plugs
Technical Data
| Material | Stainless steel 1.25 mm or 1.5 mm; 14301/304 other material on request |
| Ingress protection | IP 66 to EN 60529 |
| Surface | grinded, grain 240 other surface on request |
| Temperature range | -40°C to +80°C other temperature ranges on request |
| Other versions on request | EMC |
Product Range
| Order No | Dimensions H x W x D (mm) | Type | 3D | Datasheet | Accessoires | Request Enquiry | |
|---|---|---|---|---|---|---|---|
| 37.00 22 09 | 200 x 250 x 97 | IGS 3710 |  |
 |
 |
Accessoires | Request Enquiry |
| 37.00 22 15 | 200 x 250 x 157 | IGS 3715 | |
|
|
Accessoires | Request Enquiry |
| 37.00 32 09 | 350 x 250 x 97 | IGS 3720 | |
|
|
Accessoires | Request Enquiry |
| 37.00 33 16 | 300 x 300 x 167 | IGS 3725 | |
|
|
Accessoires | Request Enquiry |
| 37.00 44 16 | 380 x 380 x 167 | IGS 3730 | |
|
|
Accessoires | Request Enquiry |
| 37.00 44 21 | 380 x 380 x 217 | IGS 3735 | |
|
|
Accessoires | Request Enquiry |
| 37.00 53 16 | 500 x 300 x 167 | IGS 3740 | |
|
|
Accessoires | Request Enquiry |
| 37.00 63 16 | 600 x 300 x 167 | IGS 3745 | |
|
|
Accessoires | Request Enquiry |
| 37.00 64 21 | 600 x 380 x 217 | IGS 3750 | |
|
|
Accessoires | Request Enquiry |
| 37.00 99 00 | Special size acc. specification | IGS 3755 | |
|
|
Accessoires | Request Enquiry |
