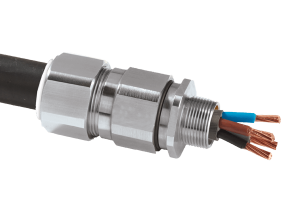

C2K, Ex Brass cable glands M
The C2K is a brass cable gland for all armoured cables. The C2K provides a pressure-proof seal for the inner cable sheath and an additional gas-tight seal.
Technical Data
| Material | Brass, nickelplated |
| Ingress protection | IP 68 |
| Temperature range | -60°C to +130°C |
| Atmosphere | G/D |
| Category | 2/3 |
| Equipment group | II |
| Type of ignition protection | Ex e |
| Zone | 1 2 21 22 |
| Cable types | all armoured cables |
| Order-No. | Type | Cable Ø | Wrench Size | Thread Length | Datasheet | Request Enquiry |
|---|---|---|---|---|---|---|
| 08.03 10 20 | M 20 x 1.5 | 6.1 x 11.5 | 15 mm | 24 mm |  |
|
| 08.03 10 22 | M 20 x 1.5 | 12.5 x 20.9 | 15 mm | 30.5 mm | |
|
| 08.03 10 25 | M 25 x 1.5 | 14 x 22 | 15 mm | 37.5 mm | |
|
| 08.03 10 26 | M 25 x 1.5 | 18.2 x 26.2 | 15 mm | 37.5 mm | |
|
| 08.03 10 32 | M 32 x 1.5 | 23.7 x 33.9 | 15 mm | 46 mm | |
|
| 08.03 10 40 | M 40 x 1.5 | 27.9 x 40.4 | 15 mm | 55 mm | |
|
| 08.03 10 51 | M 50 x 1.5 | 40.4 x 53.1 | 15 mm | 70 mm | |
|
| 08.03 10 64 | M 63 x 1.5 | 54.6 x 65.9 | 15 mm | 80 mm | |
