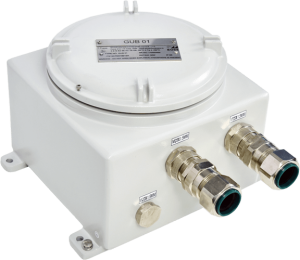

Ex d IIC Enclosure Series GUB
The Ex d GUB series of enclosures is suitable for use in Gas Group IIC for the protection of electrical and control-system solutions, such as energy distribution, monitoring of processes and the complex control of machinery and other equipment.The special feature of the Ex d series of enclosures is the fact that they can be used for the installation of equipment and components which do not have Ex approval. These flameproof enclosures are available in six different sizes, and consist of copper-free aluminium, which assures a long service-life and safe, reliable operation. The GUB series of enclosures possesses the following Ex protection certificates for this purpose:
- ATEX certificate
- IECEx certificate
- EAC certificate (for Russia, Belarus and Kazakhstan)
Technical Data
ColourRAL 7035, lichtgrau
| Explosion protection | II 2 G Ex db IIC T6/T5/T4 Gb
II 2 D Ex tb IIIC T80 °C…T130 °C Db |
| Material | Copper free aluminium |
| Certificates | ITS 15 ATEX 18212X
IECEx ITS 15.0011X |
| Ingress protection | IP 66 to EN 60529 |
| Impact resistance | 7 Joule in reference to EN 60079-0 |
| Temperature range | -20°C to +75°C |
Product Range
| Order No | Dimensions H x W x D (mm) | Type | 3D | Datasheet | Accessoires | Request Enquiry | |
|---|---|---|---|---|---|---|---|
| 40.10 20 10 | 220 x 220 x 182 | GUB 01 AL |  |
 |
 |
Accessoires | Request Enquiry |
| 40.10 20 20 | 270 x 270 x 182 | GUB 02 AL | |
|
|
Accessoires | Request Enquiry |
| 40.10 20 30 | 320 x 320 x 211 | GUB 03 AL | |
|
|
Accessoires | Request Enquiry |
| 40.10 20 40 | 370 x 370 x 217 | GUB 04 AL | |
|
|
Accessoires | Request Enquiry |
| 40.10 20 50 | 420 x 420 x 239 | GUB 05 AL | |
|
|
Accessoires | Request Enquiry |
| 40.10 20 60 | 470 x 470 x 247 | GUB 06 AL | |
|
|
Accessoires | Request Enquiry |
