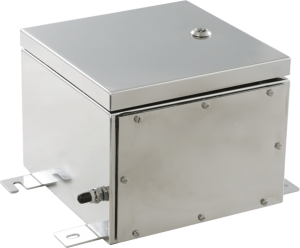

ProtEx stainless steel flange
- Top quality stainless steel flange enclosures for aggressive environments
- Empty enclosure for individual fittings or Ex e / Ex ia junction box
- Standard with 1 flange, optional up to 4 flanges
Included in delivery
Empty enclosure: Enclosure with hinged lid, doubleward lock, flange plates (3 mm) silicone lid seal, silicone flange seal, welded external brackets, external earth bolt M10, internal fixing bolts, from enclosure type 9 with lid lifting device.
Junction box: Enclosure system – as before with individual fitting, DIN rail, terminals, cable glands
Technical Data
| Certificates | PTB 00 ATEX 1101U IECEx PTB 07.0059U EAC № TC RU C-DE.ГБ05.В.00224 |
| Explosion protection | II 2G Ex e IIC T6/T5/T4 Gb II 2G Ex ia IIC T6/T5/T4 Gb II 2G Ex d e ia [ia] mb IIC T6/T5/T4 Gb II 3G Ex e d mb ia [ia] nA nC [op is] IIC T6, T5, T4 Gc II 2D Ex tb IIIC T85°C/T100°C/T135°C Db IP66 |
| Material | Stainless Steel 1.5 mm, 1.4404/316L |
| Ingress protection | IP 66 to EN 60529 |
| Surface | grinded, grain 240 |
| Impact resistance | 7 Joule to EN 60079-0 |
| Temperature range | Ex B: -55°C to +135°C other seals/executions see Ex approval |
| Other versions on request | EMC, electropolished |
Product Range
| Order No | Dimensions H x W x D (mm) | Type | 3D | Datasheet | Accessoires | Request Enquiry | |
|---|---|---|---|---|---|---|---|
| 34.06 02 00 | 260 x 260 x 205 | ProtExB 02 |  |
 |
 |
Accessoires | Request Enquiry |
| 34.06 03 00 | 306 x 306 x 205 | ProtExB 03 | |
|
|
Accessoires | Request Enquiry |
| 34.06 04 00 | 380 x 260 x 205 | ProtExB 04 | |
|
|
Accessoires | Request Enquiry |
| 34.06 05 00 | 458 x 382 x 205 | ProtExB 05 | |
|
|
Accessoires | Request Enquiry |
| 34.06 06 00 | 480 x 480 x 205 | ProtExB 06 | |
|
|
Accessoires | Request Enquiry |
| 34.06 07 00 | 500 x 350 x 205 | ProtExB 07 | |
|
|
Accessoires | Request Enquiry |
| 34.06 08 00 | 620 x 450 x 205 | ProtExB 08 | |
|
|
Accessoires | Request Enquiry |
| 34.06 09 00 | 740 x 550 x 205 | ProtExB 09 | |
|
|
Accessoires | Request Enquiry |
| 34.06 10 00 | 762 x 508 x 205 | ProtExB 10 | |
|
|
Accessoires | Request Enquiry |
| 34.06 11 00 | 860 x 640 x 205 | ProtExB 11 | |
|
|
Accessoires | Request Enquiry |
| 34.06 12 00 | 914 x 610 x 205 | ProtExB 12 | |
|
|
Accessoires | Request Enquiry |
| 34.06 13 00 | 980 x 740 x 205 | ProtExB 13 | |
|
|
Accessoires | Request Enquiry |
| 35.06 02 00 | 260 x 260 x 205 | ProtExe 02 | |
|
|
Accessoires | Request Enquiry |
| 35.06 03 00 | 306 x 306 x 205 | ProtExe 03 | |
|
|
Accessoires | Request Enquiry |
| 35.06 04 00 | 380 x 260 x 205 | ProtExe 04 | |
|
|
Accessoires | Request Enquiry |
| 35.06 05 00 | 458 x 382 x 205 | ProtExe 05 | |
|
|
Accessoires | Request Enquiry |
| 35.06 06 00 | 480 x 480 x 205 | ProtExe 06 | |
|
|
Accessoires | Request Enquiry |
| 35.06 07 00 | 500 x 350 x 205 | ProtExe 07 | |
|
|
Accessoires | Request Enquiry |
| 35.06 08 00 | 620 x 450 x 205 | ProtExe 08 | |
|
|
Accessoires | Request Enquiry |
| 35.06 09 00 | 740 x 550 x 205 | ProtExe 09 | |
|
|
Accessoires | Request Enquiry |
| 35.06 10 00 | 762 x 508 x 205 | ProtExe 10 | |
|
|
Accessoires | Request Enquiry |
| 35.06 11 00 | 860 x 640 x 205 | ProtExe 11 | |
|
|
Accessoires | Request Enquiry |
| 35.06 12 00 | 914 x 610 x 205 | ProtExe 12 | |
|
|
Accessoires | Request Enquiry |
| 35.06 13 00 | 980 x 740 x 205 | ProtExe 13 | |
|
|
Accessoires | Request Enquiry |
| 36.06 02 00 | 260 x 260 x 205 | ProtExi 02 | |
|
|
Accessoires | Request Enquiry |
| 36.06 03 00 | 306 x 306 x 205 | ProtExi 03 | |
|
|
Accessoires | Request Enquiry |
| 36.06 04 00 | 380 x 260 x 205 | ProtExi 04 | |
|
|
Accessoires | Request Enquiry |
| 36.06 05 00 | 458 x 382 x 205 | ProtExi 05 | |
|
|
Accessoires | Request Enquiry |
| 36.06 06 00 | 480 x 480 x 205 | ProtExi 06 | |
|
|
Accessoires | Request Enquiry |
| 36.06 07 00 | 500 x 350 x 205 | ProtExi 07 | |
|
|
Accessoires | Request Enquiry |
| 36.06 08 00 | 620 x 450 x 205 | ProtExi 08 | |
|
|
Accessoires | Request Enquiry |
| 36.06 09 00 | 740 x 550 x 205 | ProtExi 09 | |
|
|
Accessoires | Request Enquiry |
| 36.06 10 00 | 762 x 508 x 205 | ProtExi 10 | |
|
|
Accessoires | Request Enquiry |
| 36.06 11 00 | 860 x 640 x 205 | ProtExi 11 | |
|
|
Accessoires | Request Enquiry |
| 36.06 12 00 | 914 x 610 x 205 | ProtExi 12 | |
|
|
Accessoires | Request Enquiry |
| 36.06 13 00 | 980 x 740 x 205 | ProtExi 13 | |
|
|
Accessoires | Request Enquiry |
