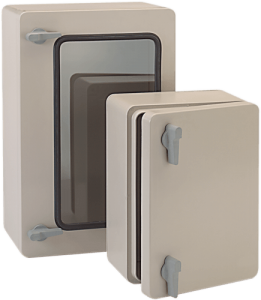

Polyglas/Polycase
- Enclosure system with hidden external hinge
- Standard version or with window
- Polycase version with integrated handle
Included in delivery
Enclosure consisting of base and door; please order door lock separately, press-in inserts in base for internal and external mounting
Technical Data
| Material | glass fibre reinforced thermoset polyester |
| Certificates | E66473 |
| Colour | RAL 7038, achatgrau, Sonderfarben auf Anfrage |
| Ingress protection | IP 66 to EN 60529 |
| Disruptive strength | 18 KV/mm, IEC 60243-1 |
| Insulation | fully insulated VDE 0100 |
| Flammability | self-extinguishing, UL 94 V-0 |
| Surface resistance | >1012 Ohm to IEC 60093 |
| Toxicity | halogen free |
| Temperature range | -40°C to +100°C with transparent window: -40°C to +80°C |
Product Range
| Order No | Dimensions H x W x D (mm) | Type | 3D | Datasheet | Accessoires | Request Enquiry | |
|---|---|---|---|---|---|---|---|
| 21.30 40 00 | 300 x 400 x 200 | Polyg 1 |  |
 |
 |
Accessoires | Request Enquiry |
| 21.40 60 00 | 400 x 600 x 250 | Polyg 2 | |
|
|
Accessoires | Request Enquiry |
| 22.30 40 00 | 300 x 400 x 200 | Polys 1 | |
|
|
Accessoires | Request Enquiry |
| 22.40 60 00 | 400 x 600 x 250 | Polys 2 | |
|
Accessoires | Request Enquiry | |
| 23.30 40 00 | 300 x 400 x 200 | Polycase T1 | |
|
|
Accessoires | Request Enquiry |
| 23.40 60 00 | 400 x 600 x 250 | Polycase T2 | |
|
|
Accessoires | Request Enquiry |
| 24.30 40 00 | 300 x 400 x 200 | Polycase 1 | |
|
|
Accessoires | Request Enquiry |
| 24.40 60 00 | 400 x 600 x 250 | Polycase 2 | |
|
|
Accessoires | Request Enquiry |
