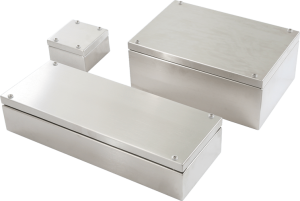

Industrial Stainless Steel

Universal industrial enclosures
No gaps between lid/base
Optional individual sizes and versions from 25 off
Ingress protection up to IP 69K

Included in delivery

Enclosure base with bracket clips and threaded hole for attachment of DIN rails, 4 mounting bosses with attachment holes and sealing plugs, alternatively available without fastening holes, lid with stud bolts inside and permanently attached lid screws.

Technical Data

Material	Stainless steel 1.25 mm or 1.5 mm; 14301/304 other material on request
Certificates	E66473
Ingress protection	IP 66 to EN 60529 high pressure cleaner-resistant version (IP69) on request
Surface	grinded, grain 240 other surface on request
Temperature range	VMQ (silicone) seal : -40°C to +80°C other temperature ranges on request
Other versions on request	EMC

Product Range

Order No	Dimensions H x W x D (mm)	Type	Accessoires	Request Enquiry
37.10 10 06	100 x 100 x 61	IG 3710	Accessoires	Request Enquiry
37.10 10 96	100 x 100 x 61	IGO 3710	Accessoires	Request Enquiry
37.15 10 06	150 x 100 x 61	IG 3715	Accessoires	Request Enquiry
37.15 10 96	150 x 100 x 61	IGO 3715	Accessoires	Request Enquiry
37.15 15 08	150 x 150 x 81	IG 3720	Accessoires	Request Enquiry
37.15 15 98	150 x 150 x 81	IGO 3720	Accessoires	Request Enquiry
37.20 10 06	200 x 100 x 61	IG 3722	Accessoires	Request Enquiry
37.20 20 08	200 x 200 x 81	IG 3725	Accessoires	Request Enquiry
37.20 20 12	200 x 200 x 121	IG 3730	Accessoires	Request Enquiry
37.20 20 92	200 x 200 x 121	IGO 3730	Accessoires	Request Enquiry
37.20 20 98	200 x 200 x 81	IGO 3725	Accessoires	Request Enquiry
37.30 15 08	300 x 150 x 81	IG 3735	Accessoires	Request Enquiry
37.30 20 08	300 x 200 x 81	IG 3740	Accessoires	Request Enquiry
37.30 20 12	300 x 200 x 121	IG 3745	Accessoires	Request Enquiry
37.30 20 92	300 x 200 x 121	IGO 3745	Accessoires	Request Enquiry
37.30 30 12	300 x 300 x 121	IG 3750	Accessoires	Request Enquiry
37.30 30 16	300 x 300 x 161	IG 3755	Accessoires	Request Enquiry
37.38 38 16	380 x 380 x 161	IG 3760	Accessoires	Request Enquiry
37.40 15 08	400 x 150 x 81	IG 3765	Accessoires	Request Enquiry
37.40 20 12	400 x 200 x 121	IG 3770	Accessoires	Request Enquiry
37.40 30 16	400 x 300 x 161	IG 3775	Accessoires	Request Enquiry
37.50 30 16	500 x 300 x 161	IG 3780	Accessoires	Request Enquiry
37.50 40 16	500 x 400 x 161	IG 3785	Accessoires	Request Enquiry
37.60 20 12	600 x 200 x 121	IG 3790	Accessoires	Request Enquiry
37.99 99 99	Special size acc. specification	IG 3795	Accessoires	Request Enquiry
