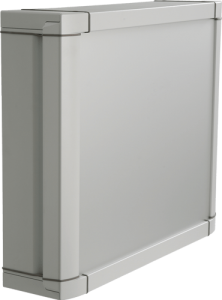

SL 4000
- Modern enclosure system for control and display systems
- Flexible size variability in height and width, 3 enclosure depths
- Easy mounting of door hinge
- Integrated handle system
Included in delivery
Complete enclosure system incl. corners, seals, fixing elements, rear panel or door, front panel fixing set.
Technical Data
| Material | Profile: DIN EN 573 EN AW-AlMgSi Cast corners: DIN EN AC-AlSi 12 Cu 1 (Fe) |
| Colour | Powder coating or natural anodised, Profile: optional RAL 7035 or natural anodized, Corner element: optional RAL 7035 light grey or RAL 9007, special colour on request |
| Ingress protection | IP 65 to EN 60529 |
| Seals | Material: corner: PE seal Front plate: CR-seal |
| Temperature range | -30°C to +80°C |
| Product configurator | Start |
| Order-No. | Technical drawing | Type | Datasheet | equipment | Requests |
|---|---|---|---|---|---|
| 20.10 99 99 | SL 4000 |  |
equipment | ||
 |
P1 + P4 side A / B | ||||
 |
P1 + P6 side A / B | ||||
 |
P1 + P6 page C / D | ||||
 |
P2 + P4 side A / B | ||||
 |
P2 + P6 side A / B | ||||
 |
P2 + P6 side C / D | ||||
 |
P4 + P1 page C / D | ||||
 |
P4 + P2 side C / D | ||||
 |
P5 + P4 side A / B | ||||
 |
P5 + P4 side C / D | ||||
 |
P5 + P6 side A / B | ||||
 |
P5 + P6 side C / D | ||||
 |
 |
Profile P1 side A / B | |||
 |
|
Profile P1 side C / D | |||
 |
 |
Profile P2 side A / B | |||
 |
 |
Profile P2 side C / D | |||
 |
 |
Profile P3 Side A / B | |||
 |
 |
Profile P3 Side C / D | |||
 |
 |
Profile P4 Side A / B | |||
 |
 |
Profile P4 Side C / D | |||
 |
 |
Profile P5 Side A / B | |||
 |
 |
Profile P5 Side C / D | |||
 |
 |
Profile P6 Side A / B | |||
 |
 |
Profile P6 Page C / D |
