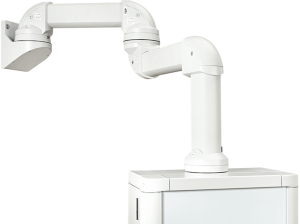

GTN II
- Design aluminium suspension system
- Closed profile system / profile with free accessible cable duct
- Can be combined with all control enclosures
Included in delivery
System individual components incl. cable duct cover and assembly material.
Technical Data
| Material | Connecting tube: DIN EN 573 EN AW-AlMgSi Components: DIN EN 1706 EN AC-AlSi12 (Fe) Cover profile: TPE |
| Colour | Powder coating, Tube, components: RAL 7035, light grey, Cover profile: RAL 9005, jet black |
| Ingress protection | IP 54 to EN 60529 |
| Seals | CR and/or PU foam |
| Free cable passage | Connecting tube: open 27 x 32 mm Connecting tube: closed 51 mm Ø System components: 51 mm Ø |
| Order-No. | Type | 3D | Datasheet | Accesories | Request Enquiry | |
|---|---|---|---|---|---|---|
| 49.47 00 01 | Adapter plate Siemens-PRO |  |
 |
Accessoires | ||
| 49.47 00 04 | Column | |
|
Accessoires | ||
| 49.47 00 06 | Adjustment unit |  |
|
Accessoires | ||
| 49.47 10 01 | Aluminium profile, open (0,5 m) | |
|
|
Accessoires | |
| 49.47 10 02 | Aluminium profile, open (1 m) | |
|
|
Accessoires | |
| 49.47 10 03 | Aluminium profile, open (2 m) | |
|
|
Accessoires | |
| 49.47 10 99 | Aluminium profile, open (variable length) | |
|
Accessoires | ||
| 49.47 11 01 | Aluminium profile anodized finish, open (0,5 m) | |
|
|
Accessoires | |
| 49.47 11 02 | Aluminium profile anodized finish, open (1 m) | |
|
|
Accessoires | |
| 49.47 11 03 | Aluminium profile anodized finish, open (2 m) | |
|
|
Accessoires | |
| 49.47 11 99 | Aluminium profile anodized finish, open (variable length) | |
|
Accessoires | ||
| 49.47 20 01 | Aluminium profile, closed (0,5 m) | |
|
|
Accessoires | |
| 49.47 20 02 | Aluminium profile, closed (1 m) | |
|
|
Accessoires | |
| 49.47 20 03 | Aluminium profile, closed (2 m) | |
|
|
Accessoires | |
| 49.47 20 99 | Aluminium profile, closed (variable length) | |
|
Accessoires | ||
| 49.47 21 01 | Aluminium profile anodized finish, closed (0,5 m) | |
|
|
Accessoires | |
| 49.47 21 02 | Aluminium profile anodized finish, closed (1 m) | |
|
|
Accessoires | |
| 49.47 21 03 | Aluminium profile anodized finish, closed | |
|
|
Accessoires | |
| 49.47 21 99 | Aluminium profile anodized finish, closed (variable length) | |
|
Accessoires | ||
| 49.47 30 02 | Height Adjustment unit GTN slide hanging | |
|
Accessoires | ||
| 49.47 30 03 | Height Adjustment unit GTN slide standing | |
|
Accessoires | ||
| 49.47 66 00 | Top mounted joint | |
|
|
Accessoires | |
| 49.47 66 01 | Top mounted joint light | |
|
|
Accessoires | |
| 49.47 66 20 | Top mounted joint (ceiling mounting) | |
Accessoires | |||
| 49.47 67 00 | Intermediate joint “Z” | |
|
|
Accessoires | |
| 49.47 67 01 | Intermediate joint “Z” light | |
|
|
Accessoires | |
| 49.47 67 02 | Intermediate joint “S” | |
|
Accessoires | ||
| 49.47 67 03 | Intermediate joint “S” light | |
|
Accessoires | ||
| 49.47 70 00 | Wall hinge | |
|
|
Accessoires | |
| 49.47 70 01 | Wall hinge light | |
|
|
Accessoires | |
| 49.47 70 20 | Wall hinge hanging | |
|
Accessoires | ||
| 49.47 71 00 | Angle | |
|
|
Accessoires | |
| 49.47 71 44 | Angle GTN II / GTS | |
|
|
Accessoires | |
| 49.47 71 45 | Angle GTN II / GTK electronic | |
|
|
Accessoires | |
| 49.47 71 49 | Angle GTN II / GT 48/2 | |
|
|
Accessoires | |
| 49.47 72 00 | Food stand fixed | |
|
|
Accessoires | |
| 49.47 72 20 | Turnable foot stand with adapter plate | |
|
|
Accessoires | |
| 49.47 72 21 | Turnable foot stand | |
|
|
Accessoires | |
| 49.47 72 22 | Turnable foot stand light | |
|
|
Accessoires | |
| 49.47 73 00 | Coupling | |
|
|
Accessoires | |
| 49.47 73 02 | Coupling Siemens-PRO | |
|
Accessoires | ||
| 49.47 73 03 | Couplingfixed | |
|
Accessoires | ||
| 49.47 75 00 | Angle Coupling | |
|
|
Accessoires | |
| 49.47 75 02 | Angle coupling Siemens-PRO | |
|
Accessoires | ||
| 49.47 76 00 | Console flange 15° | |
|
|
Accessoires | |
| 49.47 80 00 | Inclining adapter | |
|
|
Accessoires | |
| 49.47 90 01 | Flat panel adapter | |
|
|
Accessoires |
